CategoriesΒΆ

digraph Categories { label="Working of Categories tab"; "loadCategories \n(home.html)" -> "loadCategories \n(views.py)" -> "categorize function \n(categories.py)" -> {"Faculties", "Classrooms", "Facilities", "Labs", "Offices"} -> "Create HTML elements and assign icons" -> "Send to HTML" -> "Renders using MetisMenu plugin" "Facilities" -> {"Grad Longue / Grad Space", "Restrooms (Male / Female)", "Library"} }

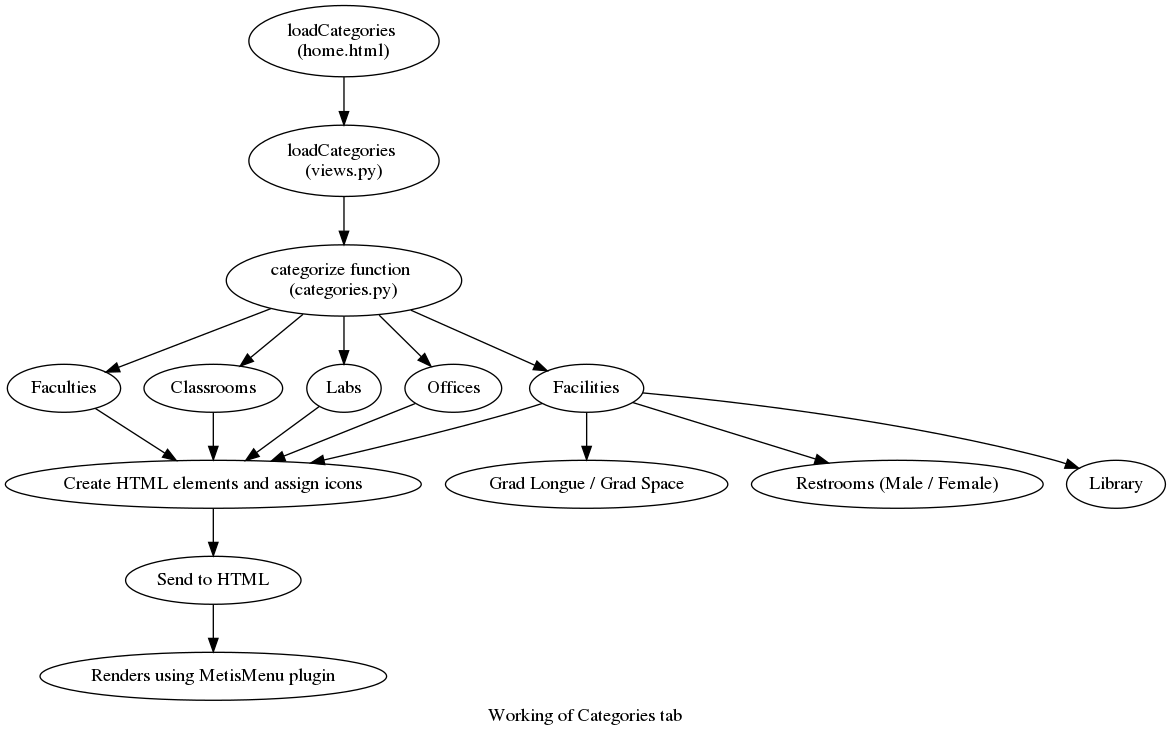

The above flow chart explains the things which will execute when request is made to the web app (in chronological order).
